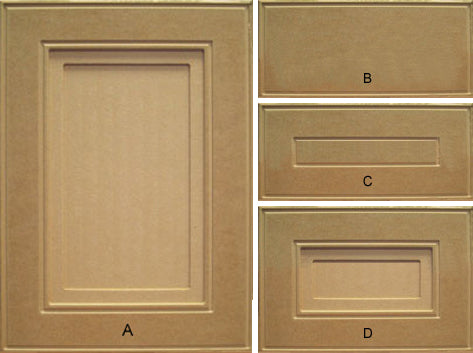

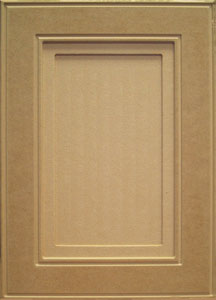

The CP-105 Series door is a multiple pass square corner flat panel door.
Available in classic design only.
The standard rail width is 3 1/8" which includes the 5/8" x 1/8" inside step (edge of door to start of rail profile) please specify if different width is required.
For doors and full rail drawer fronts, the minimum width and height is 8".
Drawer fronts have a 1" top & bottom rail. The minimum height is 5".
Drawer fronts under these measurements should be ordered as a SLAB drawer front.
For full rail drawer fronts, order as a door.
Doors may be ordered in imperial or metric measurements.
Maximum width is 48" Maximum height is 96".
Only outside edge profiles (lips) "B", 1/8" R, and square are available on this door. Please specify when ordering.
Can be ordered with raw MDF back or 110 gram white melamine back.
All doors & drawer fronts made from 3/4" premium all softwood MDF.
