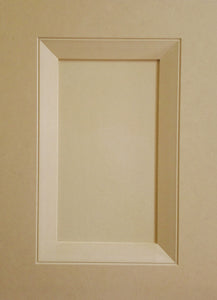

Available classic design only
The standard rail width is 2" (see drawing).
Please specify if different width is required
The rail profile width is 1" wide (see drawing)

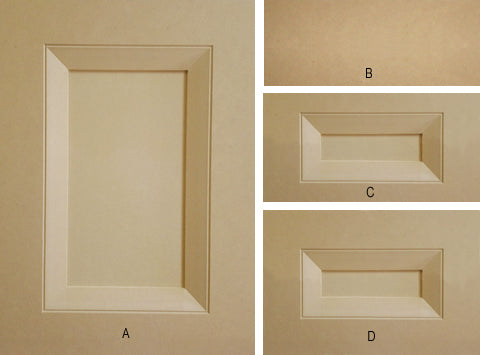

For doors (A) and full rail drawer fronts (D), the minimum width and height is 8" (leaves a 2" wide flat centre panel)
Drawer fronts (C) shown with a 1" top & bottom rail. The minimum height is 6" (leaves a 2" high flat centre panel)
Drawer fronts under these measurements should be ordered as a slab drawer front (B)
Larger doors can be made with double panels. Please specify panel and rail measurements
All outside edge profiles (lips) are available on this door
Available in 3/4" raw, 3/4" white melamine back, & 7/8" raw MDF *
*7/8" Raw MDF is recommended due to the 1/2" cut depth
